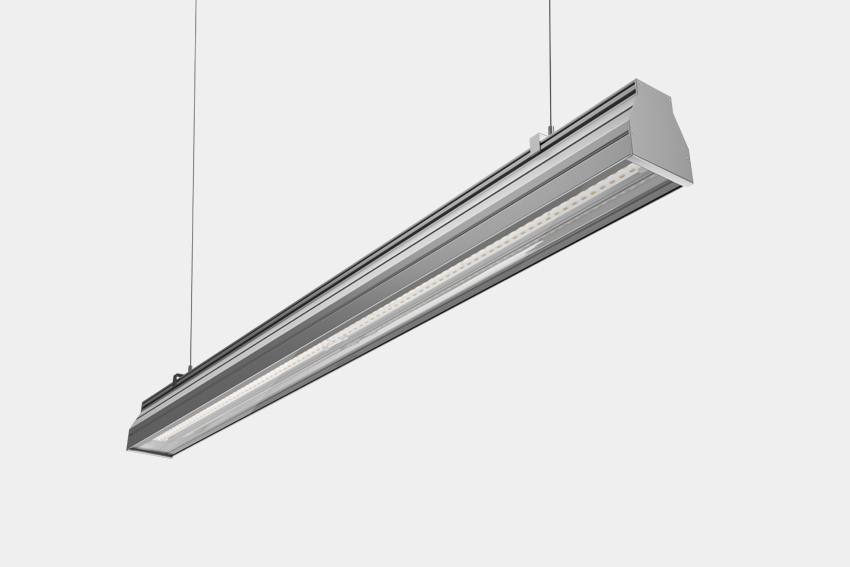

The most powerful LED light IP65 with patended optical system for industrial and storage areas. Excellent lighting performance and price ratio.
In many cases, it is very difficult to illuminate the narrow aisle space between the high shelves to avoid shading of the communication zones and to ensure the safe movement of the operator with a good visibility of the stored goods and their identification labels. That is why we have developed this kind of luminaire. To ensure the best uniformity of light in the vertical plane of the light beam.
ADVANTAGES
- excellent intensity of light beam,
- unique patended optical system,
- excellent visibility without glare,
- possible installation height up to 13m.
BASIC TECHNICAL PARAMETERS
| Type | ECOLED ALPHA PCB WRH 8200/840/54/120 | ECOLED ALPHA PCB WRH 8200/840/54/120 |
|---|---|---|
| Power Input (W) | 54 | 54 |
| Total luminous flux of the luminaire (lm) | 7200 | 7500 |
| Specific power of the light source (lm/W) | 133 | 133 |
| Luminous flux of light source (lm) | 8300 | 8300 |
| Specific power of the light source (lm/W) | 154 | 154 |
| Efficiency | 86 | 86 |

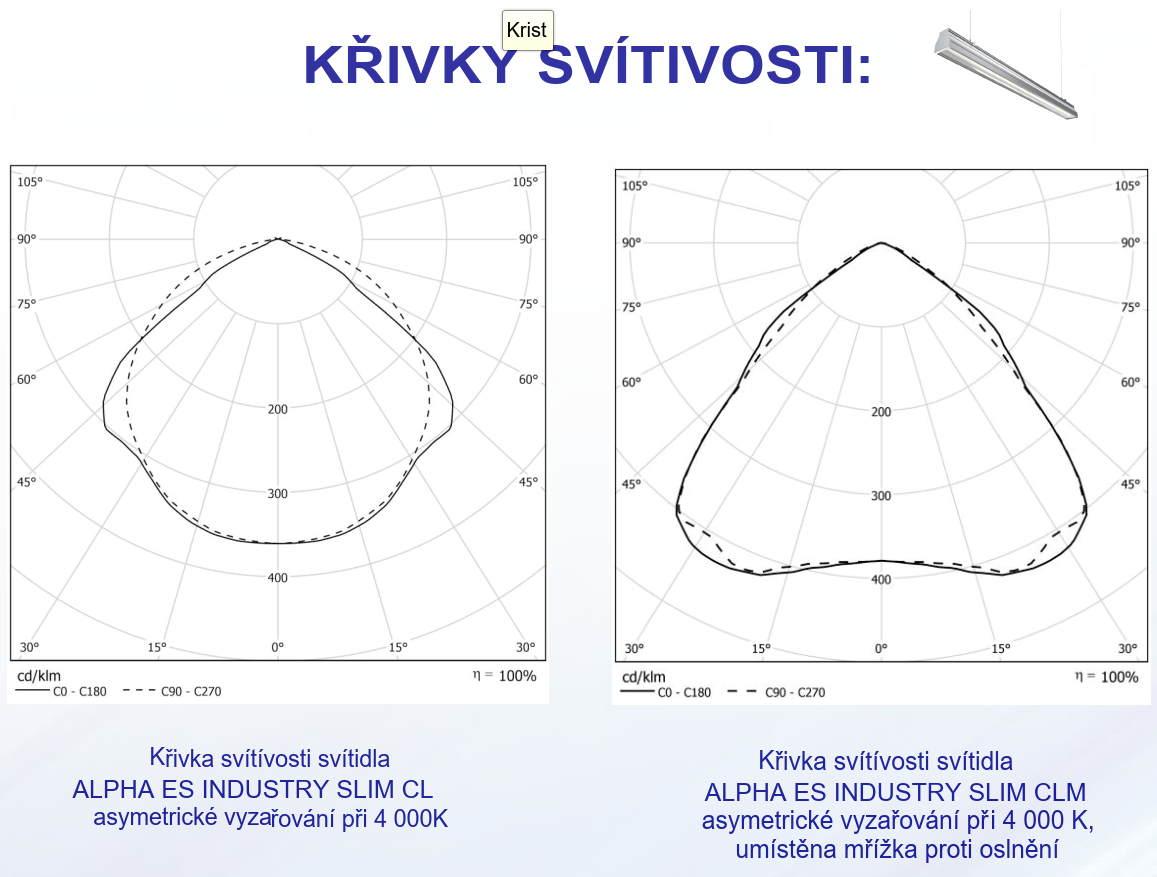

Luminosity curves
Dimensions
