ALPHA PCB INDUSTRY

ALPHA PCB INDUSTRY

New standard in LED lighting industry. Iconic design of the luminaire will give a new element of perception of industral lightning architecture to your production premises.

  Chemical industry Tunnels and roads
Logistic centres and warehouses Metallurgica industry Production halls Sports facilities

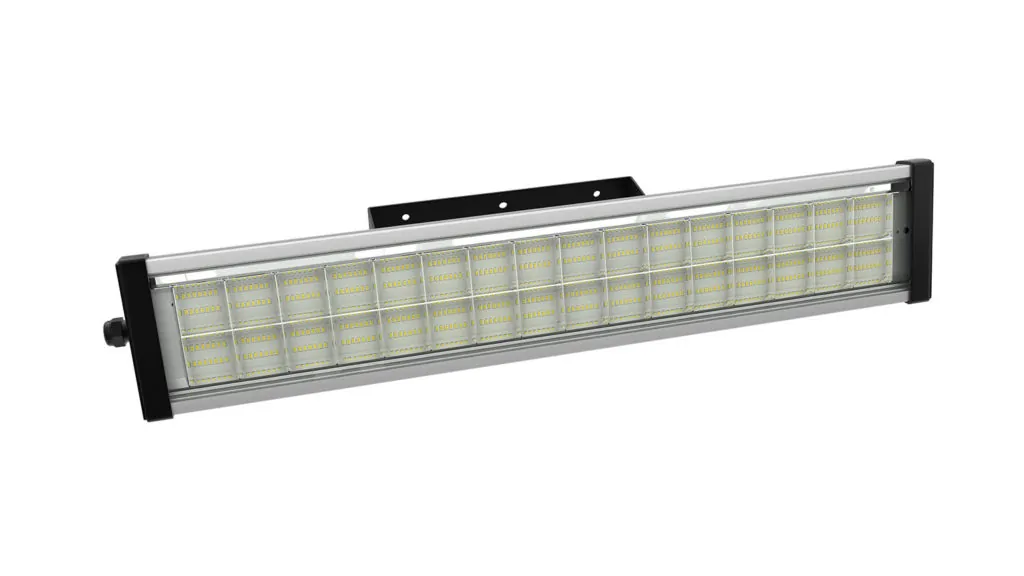

ALPHA PCB INDUSTRY is an absolute breakthrough in the LED lighting industry, it offers a significant reduction in energy consumption, durability, maximum flexibility of the modular system and innovative design. It is an example of the excellent light-technical engineering of ALPHALIGHTING company. ALPHA PCB INDUSTRY with its value of total luminous flux up to 150 lm/ W currently reaches the highest standard in high-performance industrial LED luminaires.

2 PRODUCT LINES

ALPHA PCB INDUSTRY ECO LINE
Application: Standard ambient with temperature up to +45 °C.

ALPHA PCB INDUSTRY PREMIUM
Application: Specially developed and long-term tested for installation in demanding work environment with ambient temperatures up to + 60 ° C.

ADVANTAGES

  • quality MADE IN CZECH – Certification TSU Piešťany, Slovakia,
  • the modular system enables maximum flexibility of the luminous efficacy and input power,
  • the most powerful and most energy-saving LED luminaire for demanding work environment with temperature up to +60°C,
  • combination of maximum design functionality and mechanical resistance,
  • 5 years guarantee + 5 years guarantee of replacement components availability,
  • laboratory tested lifetime of more than 60000 hours/L80 according to IES LM-80,
  • unbeatable price and high-quality ratio,
  • we ensure the guarantee of the highest quality by using components from the leading European manufacturers,
  • low installation and maintenance expenses.

TECHNICAL ADVANTAGES

  • lighting-technical parameters of the luminaire meet the requirements of IEC/STN EN 12464-1,
  • maximum luminaire efficiency up to 88%,
  • quick interchangeability of the individual luminaire components – system PLUG-IN,
  • possibility of application in industrial production halls with installation height of up to 15 m,
  • simple and fast installation using the connector system, low installation and maintenance expenses,
  • excellent maximum light output and power consumption ratio – energy class A++,
  • maximum flare reduction – optical diffuser and grid technology,
  • the possibility of mechanical adjustment of the desired angle of the luminaire tilt,
  • maximum mechanical resistance,
  • luminaires of ALPHA PCB INDUSTRY PREMIUM product line are fitted with TRIDONIC TALEXX integrated ballast with 100,000-hour lifetime at Ta +65 °C and Tc +85 °C,
  • luminaires of ALPHA PCB INDUSTRY ECOLINE product line are fitted with integrated ballast with a 50,000-hour lifetime at Ta +45°C,
  • CLO system (Constant Light Output) ensures a sufficient level of light intensity over the luminaire lifetime and increases the lifetime of LED chips.

Optical system – Clear glass with grid

Basic technical specificationALPHA PCB INDUSTRY 50ALPHA PCB INDUSTRY 80ALPHA PCB INDUSTRY 120
Power Input (W)60120180
Total luminous flux of the luminaire (lm)90001800027000
Specific luminaire power (lm / W)150150150
Luminous flux of light source (lm)102002040030600
Specific power of the light source (lm/W)170170170
Efficiency888888

Modular variants PLUG-IN

CODE/TYPEALPHA PCB INDUSTRY 250ALPHA PCB INDUSTRY 350ALPHA PCB INDUSTRY 280ALPHA PCB INDUSTRY 2120
Power Input (W)2 x 60 W/120 W3 x 60 W/180 W2 x 120 W/240 W2 x 180 W/360 W
Total luminous flux of the luminaire (lm)18000270003600054000
Specific luminaire power (lm / W)150150150150
Luminous flux of light source (lm)----
Specific power of the light source (lm/W)----
Efficiency----

Optical system – Opal glass with grid

Basic technical specificationALPHA PCB INDUSTRY 50ALPHA PCB INDUSTRY 80ALPHA PCB INDUSTRY 120
Power Input (W)60120180
Total luminous flux of the luminaire (lm)87001740026100
Specific luminaire power (lm / W)145145145
Luminous flux of light source (lm)102002040030600
Specific power of the light source (lm/W)170170170
Efficiency858585

Modular variants PLUG-IN

CODE/TYPEALPHA PCB INDUSTRY 250ALPHA PCB INDUSTRY 350ALPHA PCB INDUSTRY 280ALPHA PCB INDUSTRY 2120
Power Input (W)2 x 60 W/120 W3 x 60 W/180 W2 x 120 W/240 W2 x 180 W/360 W
Total luminous flux of the luminaire (lm)17400261003480052200
Specific luminaire power (lm / W)145145145145
Luminous flux of light source (lm)
Specific power of the light source (lm/W)
Efficiency

Luminosity curves

https://www.alphalighting-led.com/wp-content/uploads/2017/05/Čiré-sklo-bez-mřížky-60W-8x28-4000K.jpg
https://www.alphalighting-led.com/wp-content/uploads/2017/05/Čiré-sklo-s-mřížkou-120W-8x36-5000K.jpg
https://www.alphalighting-led.com/wp-content/uploads/2017/05/Opálové-sklo-bez-mřížky-60W-8x28-4000K.jpg
https://www.alphalighting-led.com/wp-content/uploads/2017/05/Opalové-sklo-s-mřížkou-120W-8x36-5000K.jpg
https://www.alphalighting-led.com/wp-content/uploads/2017/07/Industry-120-mřížka-čiré-2-300x281_EN.jpg

Dimensions

https://www.alphalighting-led.com/wp-content/uploads/2017/05/ALPHA-PCB-Industry-rozmery-3-scaled.jpg
