Universal outdoor LED luminaire with a wide range of applications and has excellent light and technical parameters.
 |
 |
 |
|
| Sports facilities | Tunnels and roads | Production halls |
ALPHA LED PROJECTOR FLOODLIGHT has a variable optical system that enables optimal light beam distribution. Maximally resistant construction made of extruded aluminium alloy with its excellent temperature management parameters ensures long luminaire lifetime.
PRODUCT LINES
ALPHA LED PROJECTOR FLOODLIGHT – 45W,70W,90W,125W,150W,180W,200W, 250W
Application: Facade lighting of sports facilities, industrial areas etc., logistics facilities, outdoor lighting, production halls.
ADVANTAGES
- quality MADE IN EU,
- excellent lighting and technical parameters of variable optical system,
- optical diffuser made of safety glass,
- luminous efficacy of the luminaire 150 lm/W,
- laboratory tested lifetime of more than 60 000 hours/L80 according to IES LM-80,
- possibility to mechanically set the desired luminaire tilt angle,
- excellent mechanical resistance against the external weather effects,
- IP66, CRI80, CCT 4000K/5000K cover.
TECHNICAL ADVANTAGES
- light and technical parameters of the luminaire meet the requirements of the ČSN/STN EN 12464-1 standard,
- maximum luminaire efficiency up to 91 %,
- quick changeability of the individual luminaire components – PLUG–IN system,
- easy and quick installation using connector system, low installation and maintenance costs,
- A++ energy class,
- electronic ballast OSRAM, HELVAR, BAG, LED chips Samsung and OSRAM.
BASIC TECHNICAL PARAMETERS
| Type | ALPHA LED PROJECTOR FLOODLIGHT 45 | ALPHA LED PROJECTOR FLOODLIGHT 70 ASYM/UP | ALPHA LED PROJECTOR FLOODLIGHT 90 ASYM/UP | ALPHA LED PROJECTOR FLOODLIGHT 125 ASYM/UP | ALPHA LED PROJECTOR FLOODLIGHT 150/30°, 45°, 60°, 90° | ALPHA LED PROJECTOR FLOODLIGHT 180/ 30°, 45°, 60°, 90° |
|---|---|---|---|---|---|---|
| Power Input (W) | 45 | 70 | 90 | 125 | 150 | 180 |
| Total luminous flux of the luminaire (lm) | 4550 | 8500-8800 | 10600-10900 | 14400-14700 | 17000-25000 | 21000-31000 |
| Specific luminaire power (lm / W) | 101 | 121-126 | 118-121 | 115-118 | 113-120 | 110-125 |
| Luminous flux of light source (lm) | 5750 | 9900 | 12700 | 17500 | 19000-29500 | 25000-34500 |
| Specific power of the light source (lm/W) | 128 | 141 | 141 | 140 | 127-135 | 105-115 |
| Efficiency | 79 | 86-89 | 83-86 | 82-84 | 79-91 | 79-91 |
BASIC TECHNICAL PARAMETERS
| Type | ALPHA LED PROJECTOR FLOODLIGHT 200/30°, 45°, 60°, 90° | ALPHA LED PROJECTOR FLOODLIGHT 250/30°, 60°, 90°, 120° |
|---|---|---|
| Power Input (W) | 200 | 250 |
| Total luminous flux of the luminaire (lm) | 29500-34000 | 33500 |
| Specific luminaire power (lm / W) | 105-115 | 134 |
| Luminous flux of light source (lm) | 28000-38000 | 37500 |
| Specific power of the light source (lm/W) | 105-115 | 150 |
| Efficiency | 79-91 | 89 |

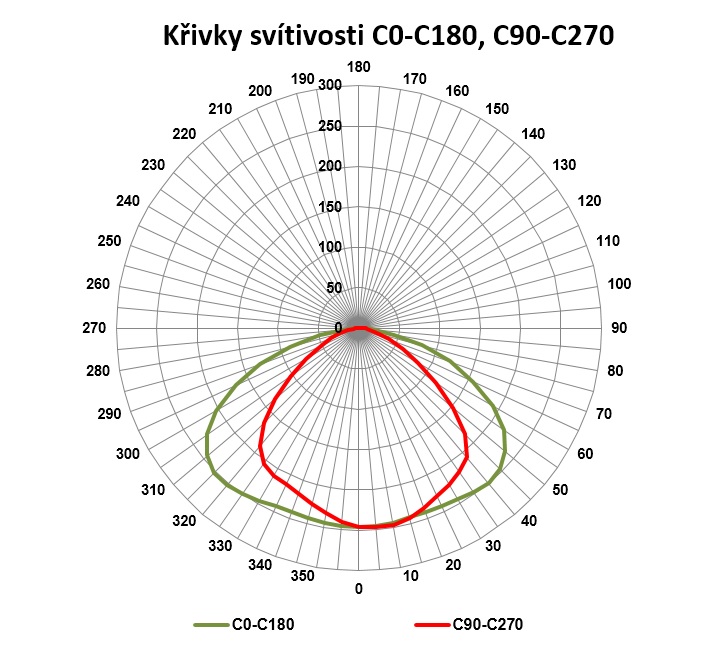

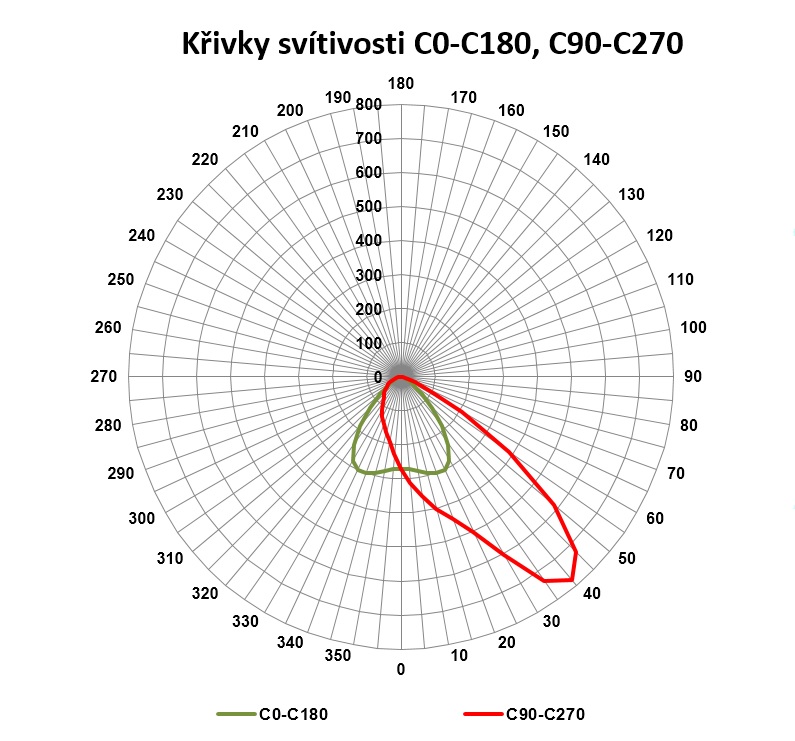

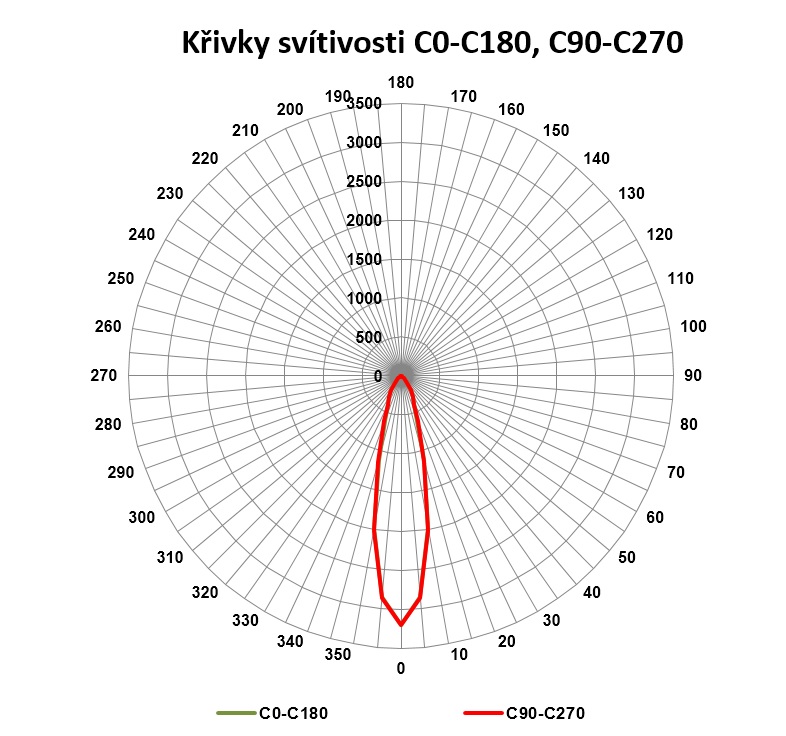

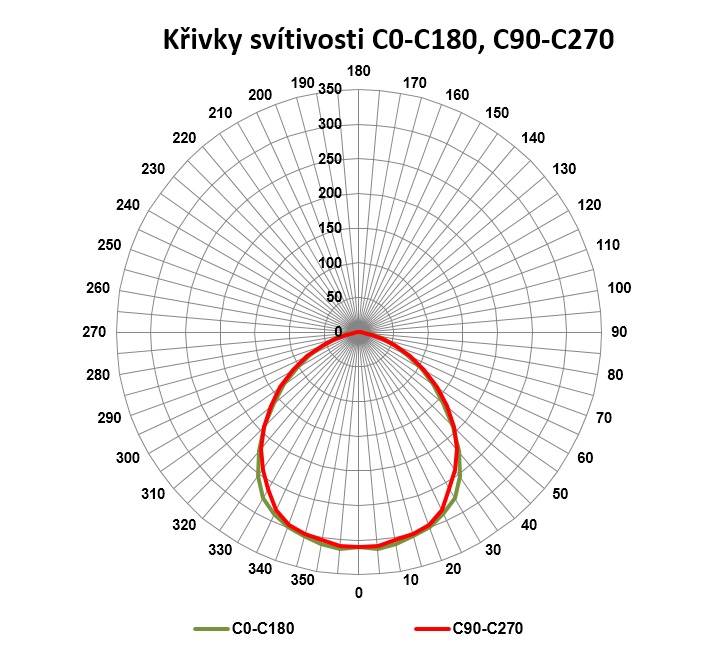

Luminosity curves

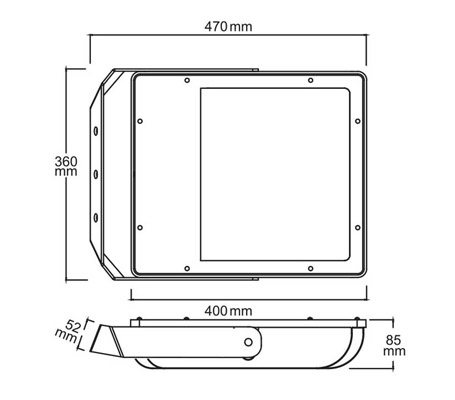

Dimensions
