ALPHA US MEISSA

ALPHA US MEISSA

Multifunction Recessed and surface-mounted LED luminaire


Commercial lighting

ALPHA US MEISSA is maximum variable LED luminaire with an excellent price-performance ratio. Modern and unobtrusive design. The optical system of the luminaire provides a very pleasant and diffused light. The ideal product for assembly companies with one type of luminaire, you can meet several requirements at once.

PRODUCT LINES

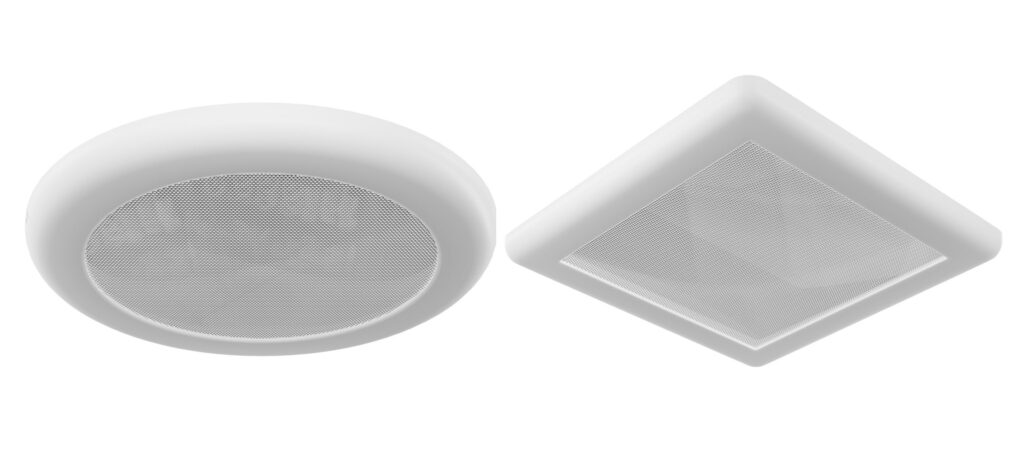

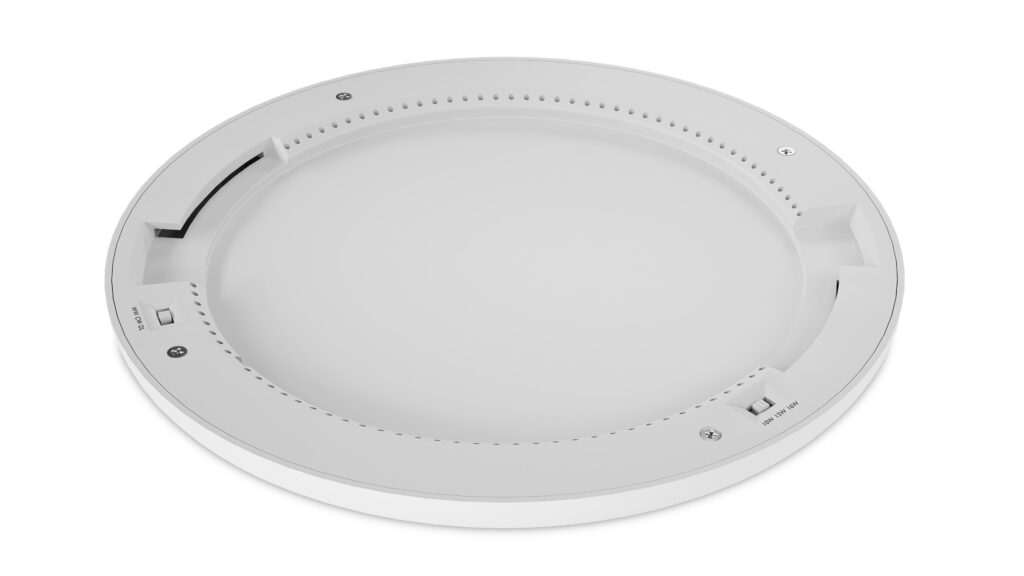

  • ALPHA US MEISSA CRL/16P3/8C3/235

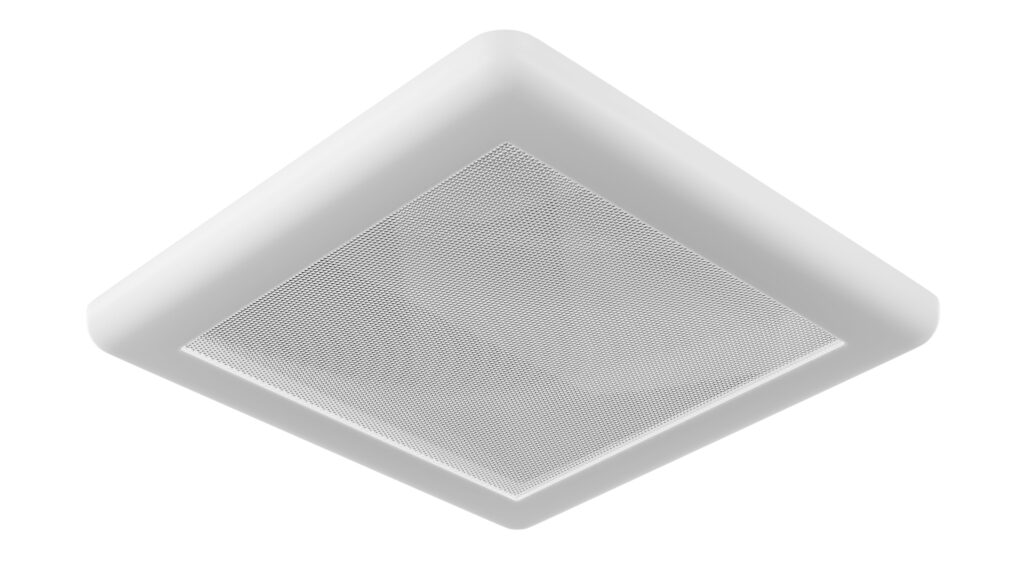

  • ALPHA US MEISSA SQR/16P3/8C3/235

ADVANTAGES

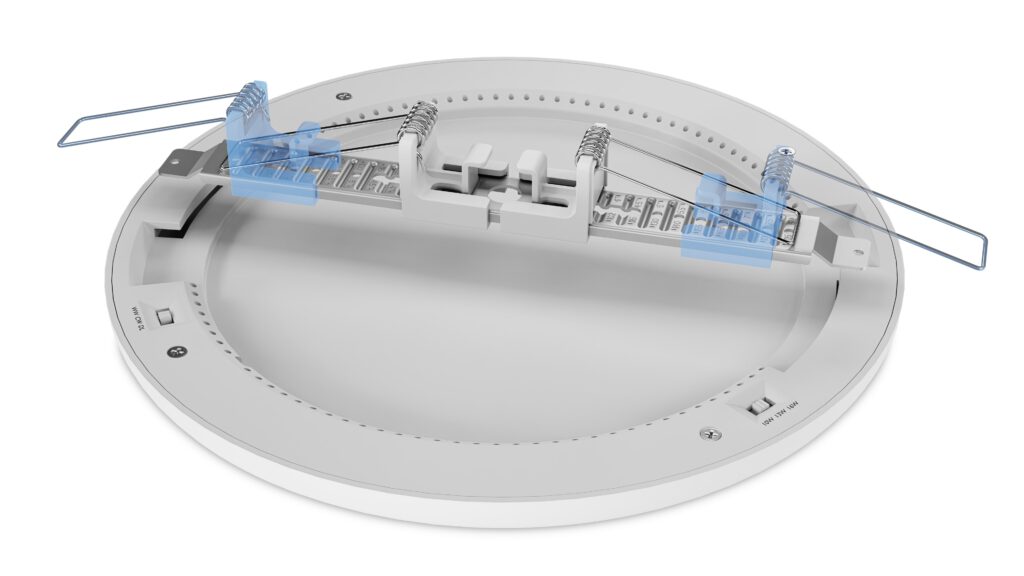

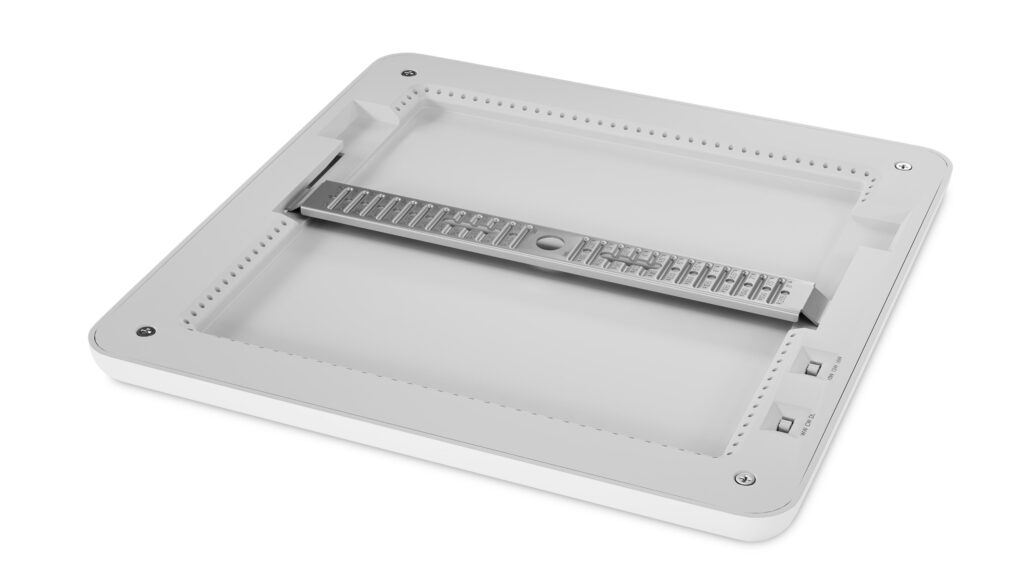

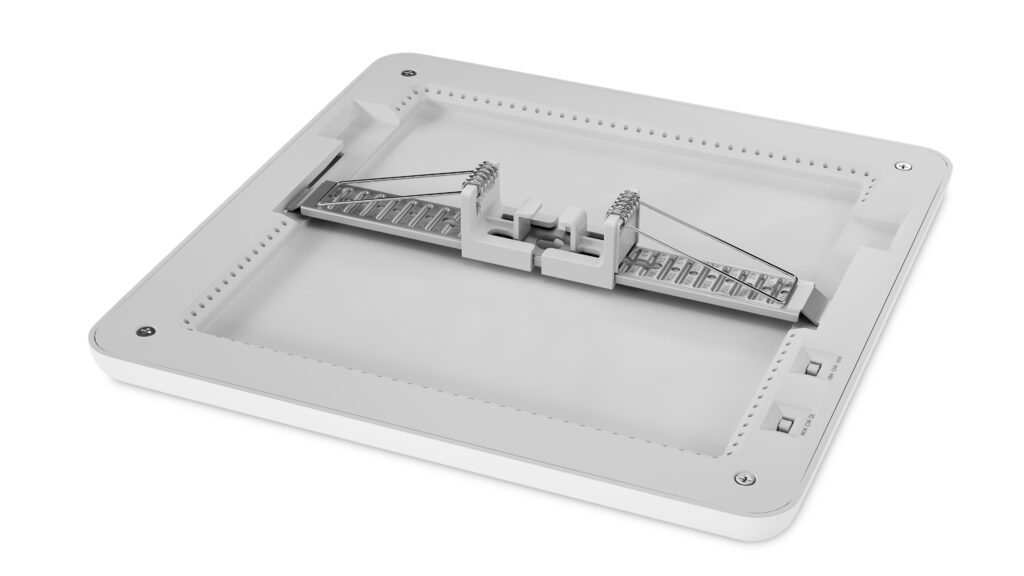

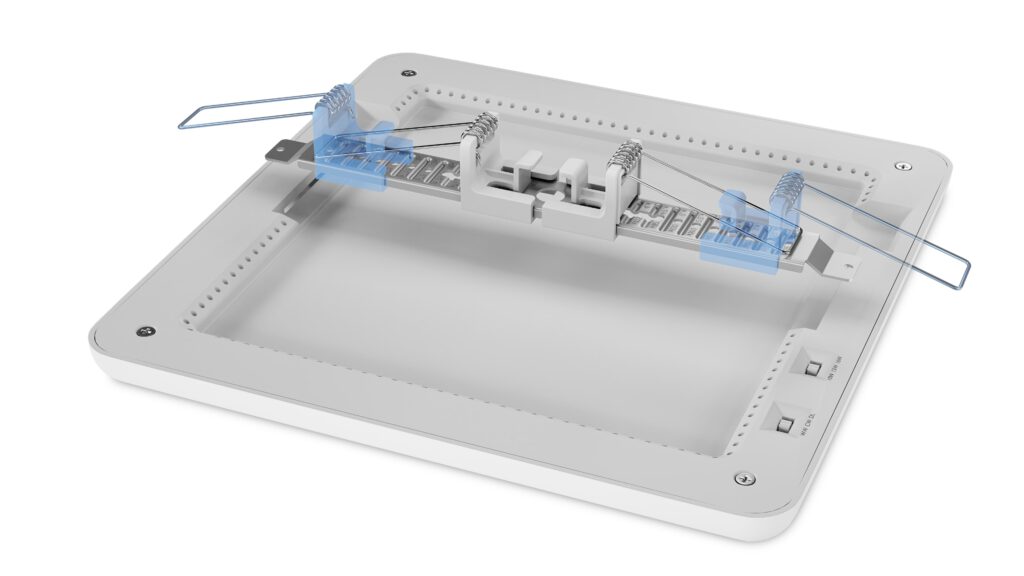

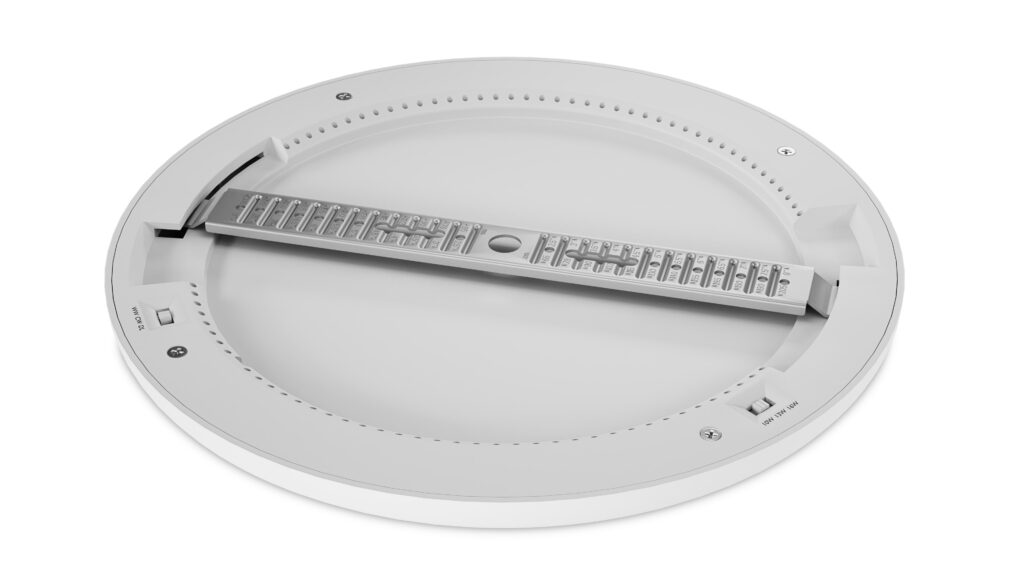

  • Variable adjustable mechanical system for flush and surface mounting

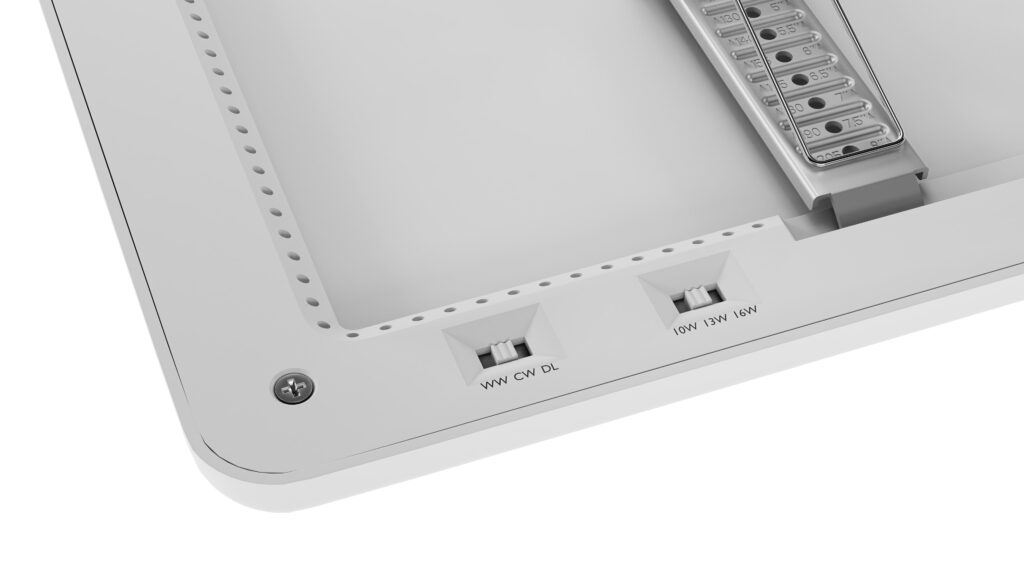

  • Optional CCT color chromaticity setting in the range of 3000 K, 4000 K, 5000 K

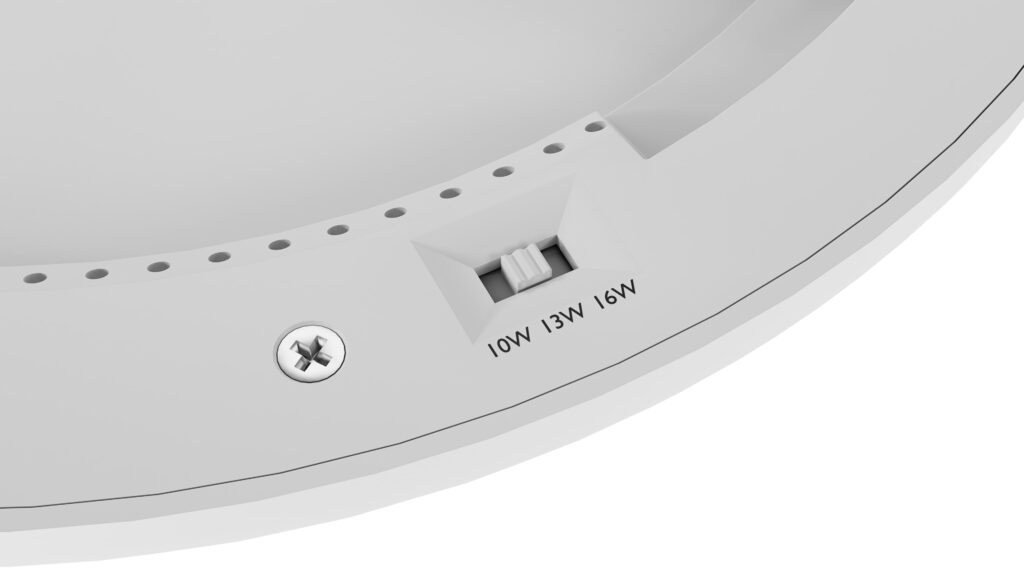

  • Optional luminaire power setting in the range from 10 W, 13 W, 16 W

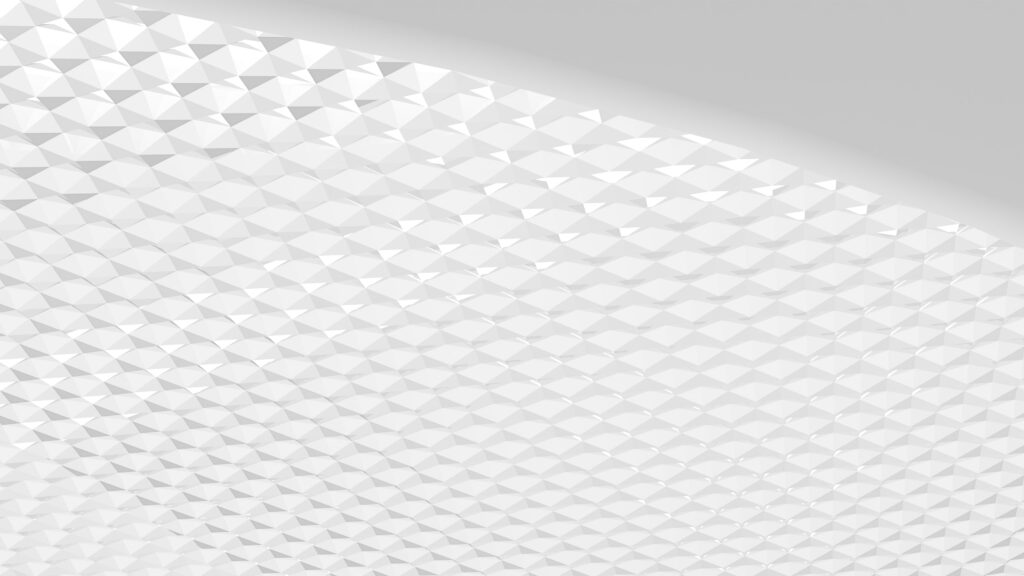

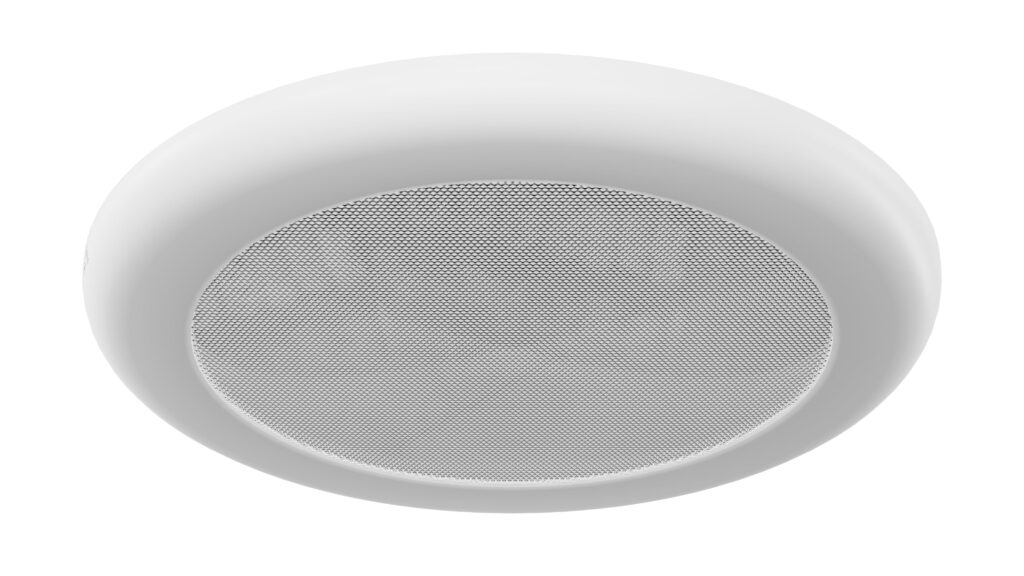

  • Choice of diffuser in OPAL design or MICROPRISMA
  • Super thin luminaire design with integrated power supply

Basic parameters ALPHA US MESSIA

CODE/TYPEALPHA US MEISSA CRL/16P3/8C3/235ALPHA US MEISSA SQR/16P3/8C3/235
Power Input (W)10W, 13W ,16W10W, 13W ,16W
Rated Input Voltage (V)200-240V/50-60Hz200-240V/50-60Hz
Power Factor0,90,9
Electrical ClassIIII
LED SourcePCBPCB
Total luminous flux of luminaire1000lm/ 1300lm/ 1600lm1000lm/ 1300lm/ 1600lm
CRI≥ 80≥ 80
Correlated Color Temperature CCT (K)3000K, 4000K, 5700K3000K, 4000K, 5700K
CCT change settingYES/optional accessoriesYES/optional accessories
Dimming DALINONO
Emergency moduleYES/optional accessoriesYES/optional accessories
Beam angle (°)120°120°
UGR
IP Rating2020
IK Rating
Width235235
Depth235235
Height1616
Weight (kg)0,36 kg0,55 kg
MaterialPS+PC/AluminiumPS+PC/Aluminium
Luminaire construction colorBílá/ White 9016Bílá/ White 9016
Ambient temperature Ta (°C)-20°C +45°C-20°C +45°C
Lifetime (h)50 000h/L7050 000h/L70
Warranty5 years5 years

Product lines

CODE/TYPEALPHA US MEISSA CRL/16P3/8C3/235ALPHA US MEISSA SQR/16P3/8C3/235US MEISSA CRL/16P3/8C3/235
Total power consumption of the luminaire (W)10, 13, 1610, 13, 16
Total luminous flux of the luminaire (lm)1000/1300/16001000/1300/1600
Luminous flux of light source (lm)1000/1300/16001000/1300/1600

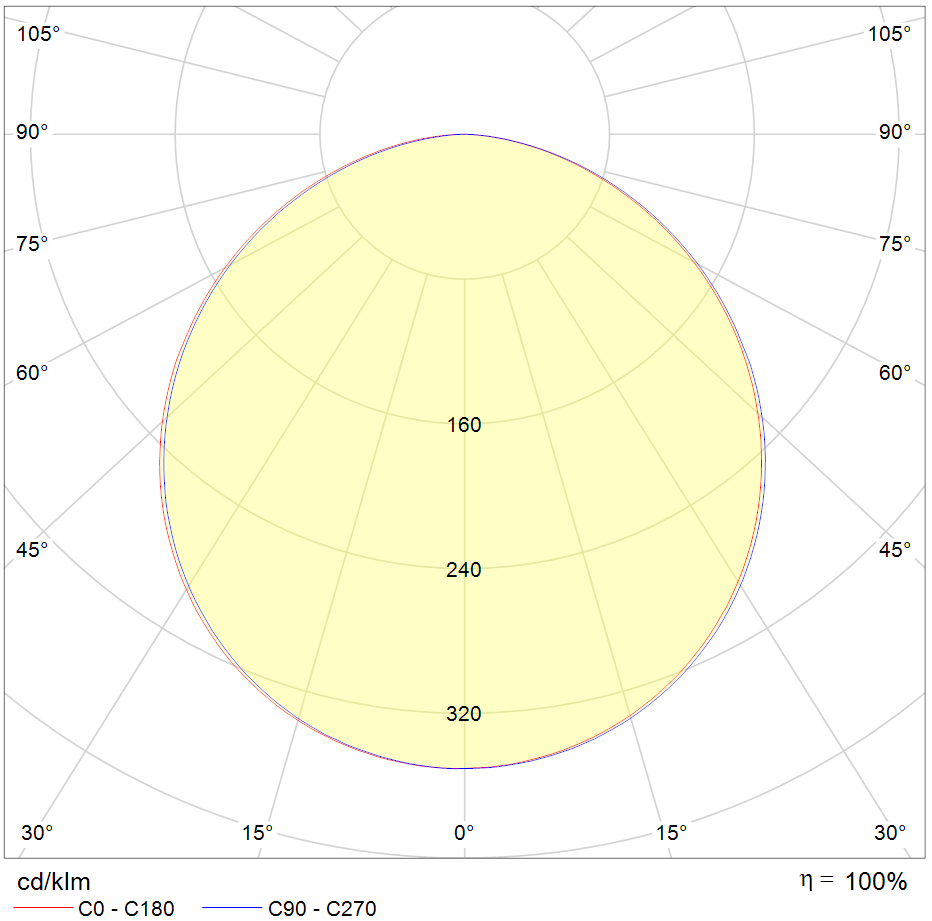

Luminosity curves

https://www.alphalighting-led.com/wp-content/uploads/2020/06/křivka-meissa.png
