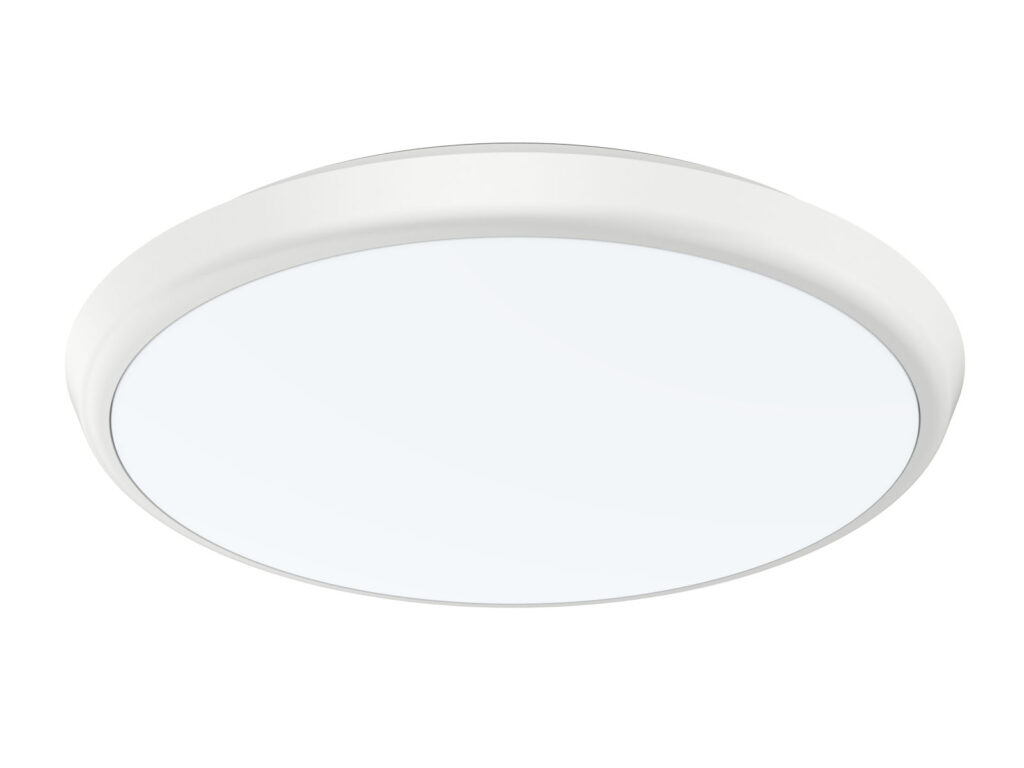

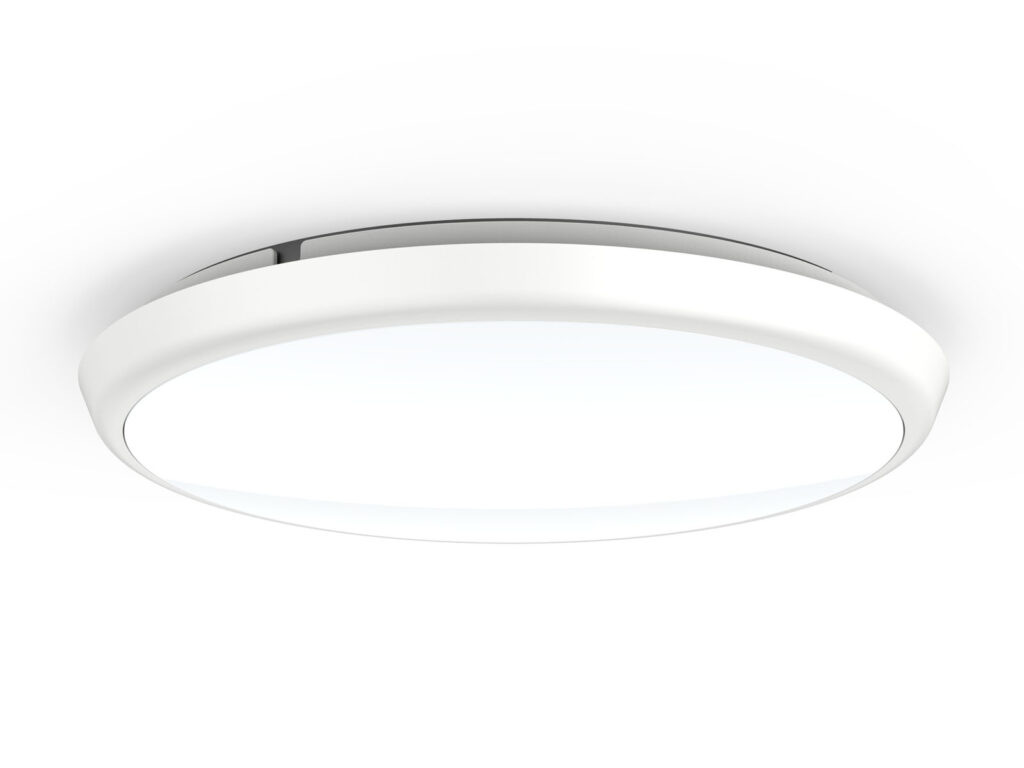

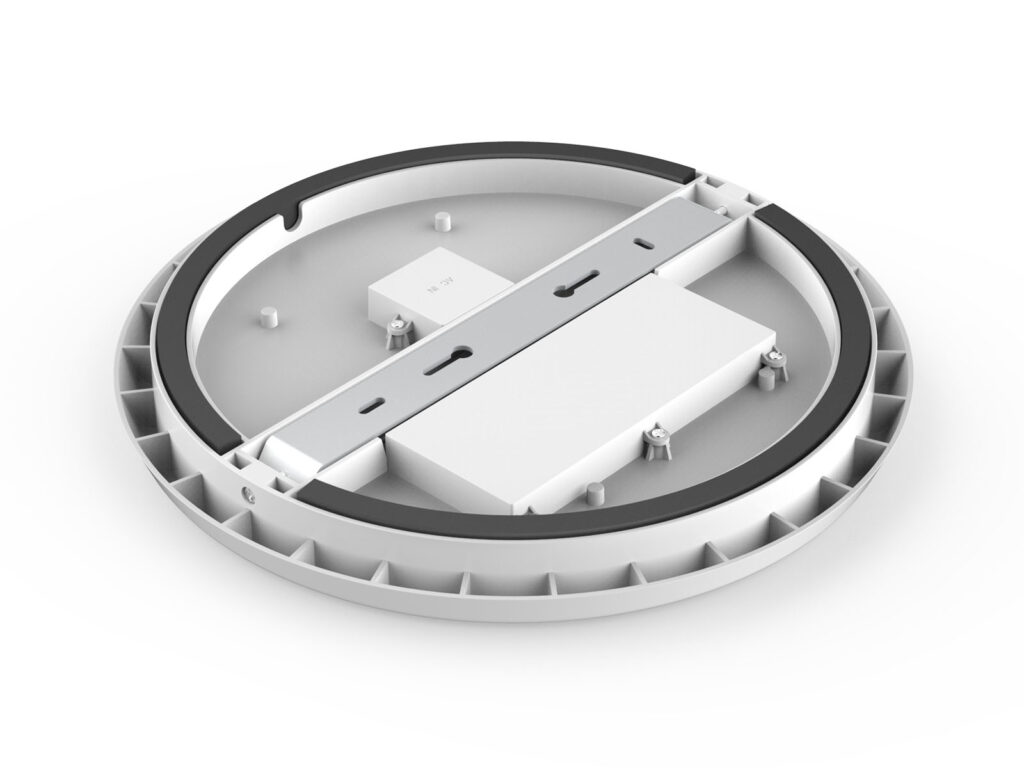

Surface-mounted LED luminaire with lens optic
 |
|||
| Commercial lightning |
ALPHA US Star is a universal luminaire for interior areas. It is designed for offices, supermarkets, schools, hotels, etc. The variable optical system provides optimal light beam distribution. ALPHA US STAR LED is waterproof and can be used as light for damp places, for example, indoor swimming pools.
ADVANTAGES
- Housing made of white steel SPCC, diffuser PC
- Waterproof structural design can be used to 90% humidity
- Easy installation
- Version Wide Beam 120° (WB)
- Lifetime 40 000 hours
- Total luminous flux of luminaire 2550 lm/4000K, 2575 lm/5000K
Basic parameters ALPHA US Star
| CODE/TYPE | ALPHA US STAR 25/840/300 | ALPHA US STAR 25/850/300 |
|---|---|---|
| Power Input (W) | 25 W | 25 W |
| Rated Input Voltage (V) | 200-240V/50-60Hz | 200-240V/50-60Hz |
| Power Factor | 0,9 | 0,9 |
| Electrical Class | II | II |
| LED Source | PCB | PCB |
| Total luminous flux of the luminaire (lm) | 2550 lm | 2575 lm |
| CRI | ≥ 80 | ≥ 80 |
| Correlated Color Temperature CCT (K) | 4000K(3000K, 4000K, 5000K, 5700K) | 5000K(3000K, 4000K, 5700K) |
| CCT change setting | NO | NO |
| Dimming DALI | NO | NO |
| Emergency module | NO | NO |
| Beam angle (°) | 120° | 120° |
| UGR | – | 22 |
| IP Rating | 54 | 54 |
| IK Rating | – | – |
| Width | 300 | 300 |
| Depth | 300 | 300 |
| Height | 40 | 40 |
| Weight (kg) | 0,8kg | 0,8kg |
| Material | PC/OCEL | PMMA/PS/ Aluminum |
| Luminaire construction color | White 9016 | White 9016 |
| Ambient temperature Ta (°C) | -20°C +45°C | -20°C +45°C |
| Lifetime (h) | >40 000h/L80/B10 | >40 000h/L80/B10 |
| Warranty | 5 years | 5 years |

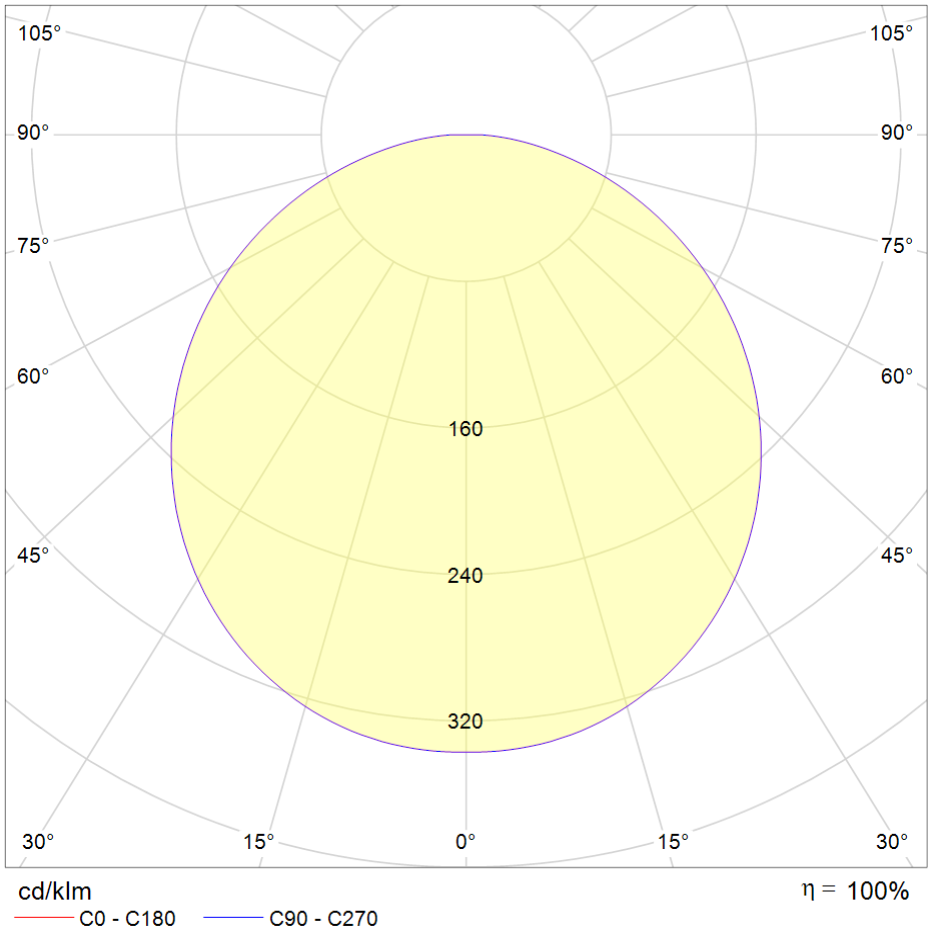

Luminosity curves
